Ideal for applications requiring a high degree of precision, grinding machines are extensively used to produce smooth, precise surfaces on a variety of materials. Chevalier Machinery USA is a top maker of grinding machines. They started in 1988 in Taiwan as Falcon Machine Tools and are now a big company listed on the Taiwan Stock Exchange, with branches in the US, China, and Europe. Their machine assembling facilities are ISO 9001 certified, consisting of dedicated R&D, machining, sheet metal production, and electronic departments.
Chevalier surface grinders enable the achievement of intricate grinding tasks with unmatched accuracy. They are indispensable in industries that demand superior surface finishes, stringent tolerances, and optimal material removal. From manual to fully automated options, Chevalier delivers a comprehensive suite of solutions, including semi-automated double-column vertical grinding and advanced 5-axis grinding centers. These machines are perfect for industries like gas, oil, energy, aerospace, medical, cars, semiconductors, and more.
Max. grinding length – Longitudinal | 460 to 2000 mm |
Max. grinding width – Crosswise | 200 to 600 mm |
Max. table travel | 510 to 2,100 mm |
Transverse movement (Z) Max. travel | 220 to 675 mm |
Wheel dimension OD x Width x Bore | Ø205 x 12.7 x Ø31.75 to Ø405 x 75 x Ø127 mm |
Max. grinding length – Longitudinal | 350 to 480 mm |
Max. grinding width – Crosswise | 170 to 170 mm |
Max. table travel | 360 to 520 mm |
Transverse movement (Z) Max. manual travel | 185 to 195 mm |
Wheel dimension OD x Width x Bore | Ø205 x 12.7 x Ø31.75 mm |
Max. grinding length – Longitudinal | 480 to 630 mm |
Max. grinding width – Crosswise | 170 to 355 mm |
Max. table travel | 500 to 650 mm |
Transverse movement (Z) Max. manual travel | 185 to 365 mm |
Wheel dimension OD x Width x Bore | Ø205 x 12.7 x Ø31.75 to Ø355 x 50 x Ø127 mm |
Max. grinding length – Longitudinal | 610 to 1015 mm |
Max. grinding width – Crosswise | 305 to 405 mm |
Max. table travel | 700 to 1100 mm |
Transverse movement (Z) Max. manual travel | 350 to 450 mm |
Wheel dimension OD x Width x Bore | Ø355 x 50 x Ø127 mm |

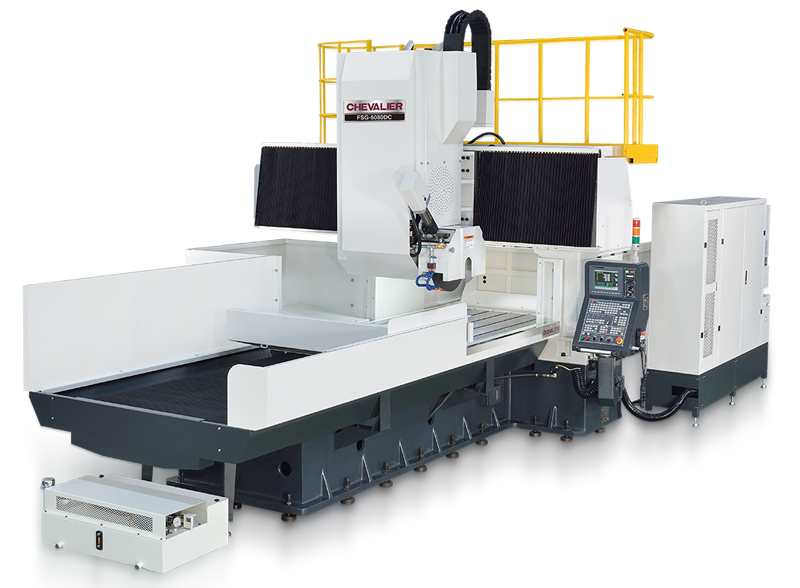

Max. grinding length – Longitudinal | 3000 to 13000 mm |
Max. grinding width – Crosswise | Horizonal head: 2000 to 3800 mm Vertical head 1500 to 3500 mm |
Max. table travel | 3500 to 13500 mm |
Transverse movement (Z) | 2700 to 4700 mm |
Wheel dimension OD x Width x Bore | Horizontal Head Ø610 x 203 x 100 Vertical Head Ø405 x 127 x 50 |
Max. grinding length – Longitudinal | 610 to 1015 mm |
Max. grinding width – Crosswise | 305 to 405 |
Max. table travel | Hydraulic 650 to 1050 mm |
Transverse movement (Z) | 350 to 450 mm |
Wheel dimension OD x Width x Bore | Ø355 x 50 x Ø127 mm |
Max. grinding length – Longitudinal | 1200 to 4000 mm |
Max. grinding width – Crosswise | 500 to 600 |
Max. table travel | 1300 to 4200 mm |
Transverse movement (Z) | 560 to 685 mm |
Wheel dimension OD x Width x Bore | Ø405 x 50 x Ø127 mm |
Max. grinding length – Longitudinal | 1200 to 1600 mm |
Max. grinding width – Crosswise | 500 mm |
Max. table travel | 1300 to 1700 mm |
Transverse movement (Z) | 560 mm |
Wheel dimension OD x Width x Bore | Ø405 x 50 x Ø127 mm |
Max. grinding length – Longitudinal | 610 to 810 mm |
Max. grinding width – Crosswise | 305 to 410 mm |
Max. table travel | 710 to 920 mm |
Transverse movement (Z) | 350 to 510 mm |
Wheel dimension OD x Width x Bore | Ø405 x 75 x Ø127 mm |
Max. grinding length – Longitudinal | 1500 to 3000 mm |
Max. grinding width – Crosswise | 1000 to 1500 mm |
Max. table travel | 1700 to 3200 mm |
Transverse movement (Z) | 1250 to 1700 mm |
Wheel dimension OD x Width x Bore | Horizontal Head Ø510 x 100 x 127 to Ø610 x 100 x 203 Vertical Head Ø410 x 50 x 127 mm |
Boasting advanced technology and versatile features, the Chevalier surface grinding machine including the Chevalier automatic surface grinder offers an unbeatable combination of performance and accuracy. It sets new standards for precision and efficiency. Chevalier’s grinding machines are in high demand across industries that necessitate flawlessly smooth surfaces and precise dimensions. These attributes are indispensable for ensuring the optimal functionality and top-notch quality of the final products.
If you are looking forward to purchasing the Chevalier surface grinders, look no further than RAY Mechatronics. We are an authorized Chevalier distributor offering genuine products, all coming with a warranty. Our range of Chevalier grinders includes sizes from small tabletop to large industrial grinders. RAY Mechatronics’ skilled and experienced team is eager to assist you in choosing the appropriate surface grinder and addressing your queries.
